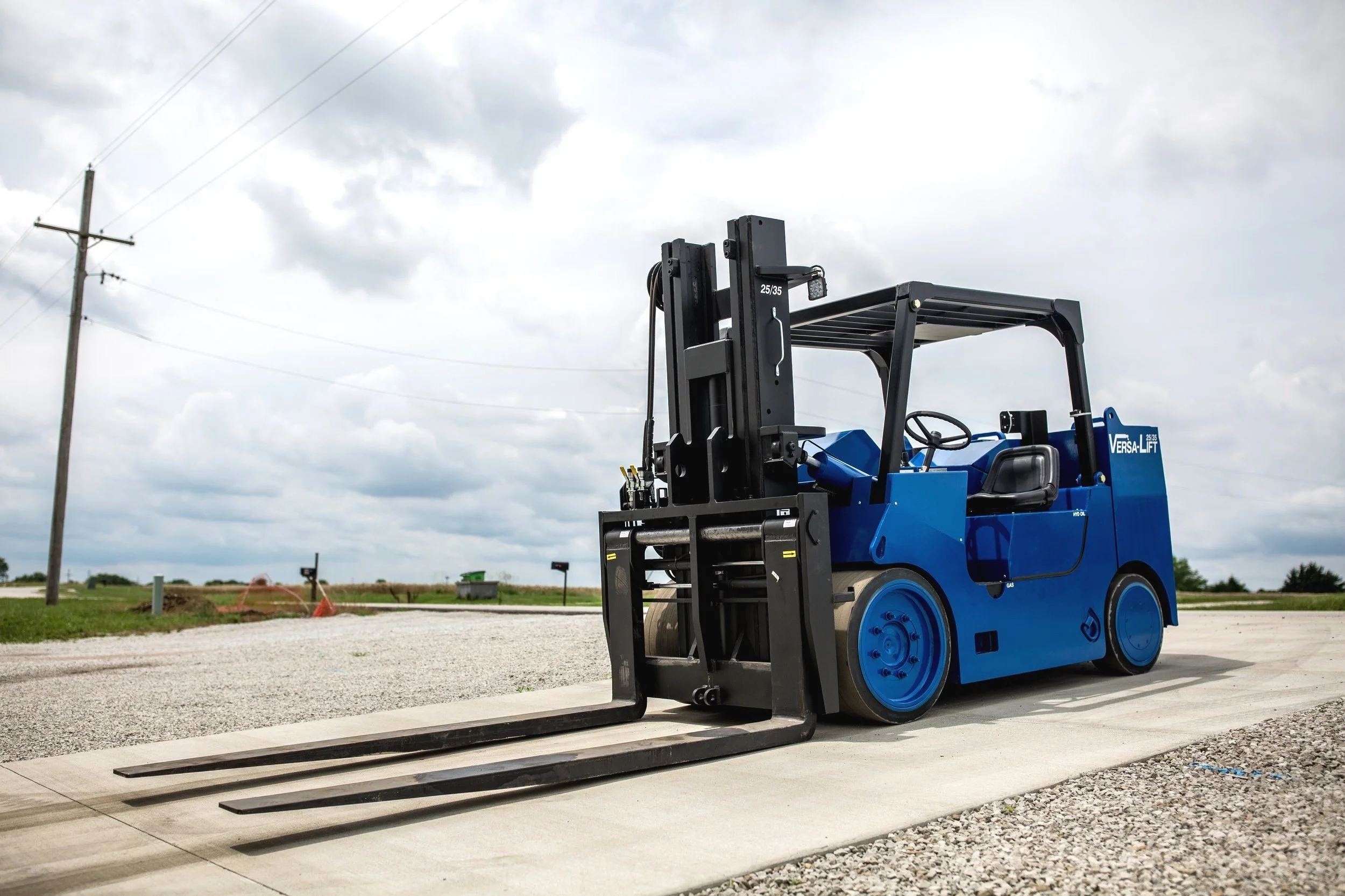

25/35 Versa-Lift
The 25/35 Versa-Lift boasts exceptional performance capabilities that make it a game-changer in the market. With a lifting capacity of up to 35,000 pounds, it can handle even the most demanding tasks effortlessly. This exceptional lifting capacity, combined with its compact design, offers unparalleled versatility for a wide range of applications.
Reliability is non-negotiable when it comes to heavy lifting equipment. The 25/35 Versa-Lift incorporates robust construction and high-quality components to deliver unparalleled durability. Built with extreme conditions in mind, this machine is engineered to withstand the harshest environments, guaranteeing a long service life and minimal maintenance requirements.
Versatility is at the core of our design principles, and the 25/35 Versa-Lift embodies this philosophy. This machine is engineered to accommodate various attachments and accessories, enabling it to adapt to numerous lifting challenges. Customizable options such as specialized forks, boom attachments, and hoisting configurations ensure that it can tackle a diverse range of lifting requirements, making it a valuable asset for any industry.
2.5L Kubota Engine (LP or Dual Fuel Option)
Load Sensing Pump
All-In-One Custom Manifold
Fully Sealed IP67 Electronic Controls and Components
Machine Override capability if levers or pedal fail
Lift Capacity Calculator
Features
Extendable Counterweight
Diagnostics capability on the display screen
Remote Control Capability (Optional)
Fork Positioning (Optional)
Side Shifting (Optional)
Custom forks available upon request
Capacity
Frame Retracted - 25,000 lbs.
Frame Extended - 35,000 lbs.
Grade
38% Grade Empty
17% Grade Loaded
Weight
Chassis - 24,000 lbs.
Removable Counterweights - 6,000 lbs.
Boom - 3,000 lbs.
Forks - 1,500 lbs.
Total Gross - 34,500 lbs.
Tires
Drive Tire - 28" X 16" X 22" Press On
Steer Tire - 22" X 8" X 16" Press On
Tilt
11 Degrees Forward
6 Degrees Back
